A new choice for everyday garment care
Rapid Dry | Silent Dry | Hygiene & Fresh | Timer up to 9 h

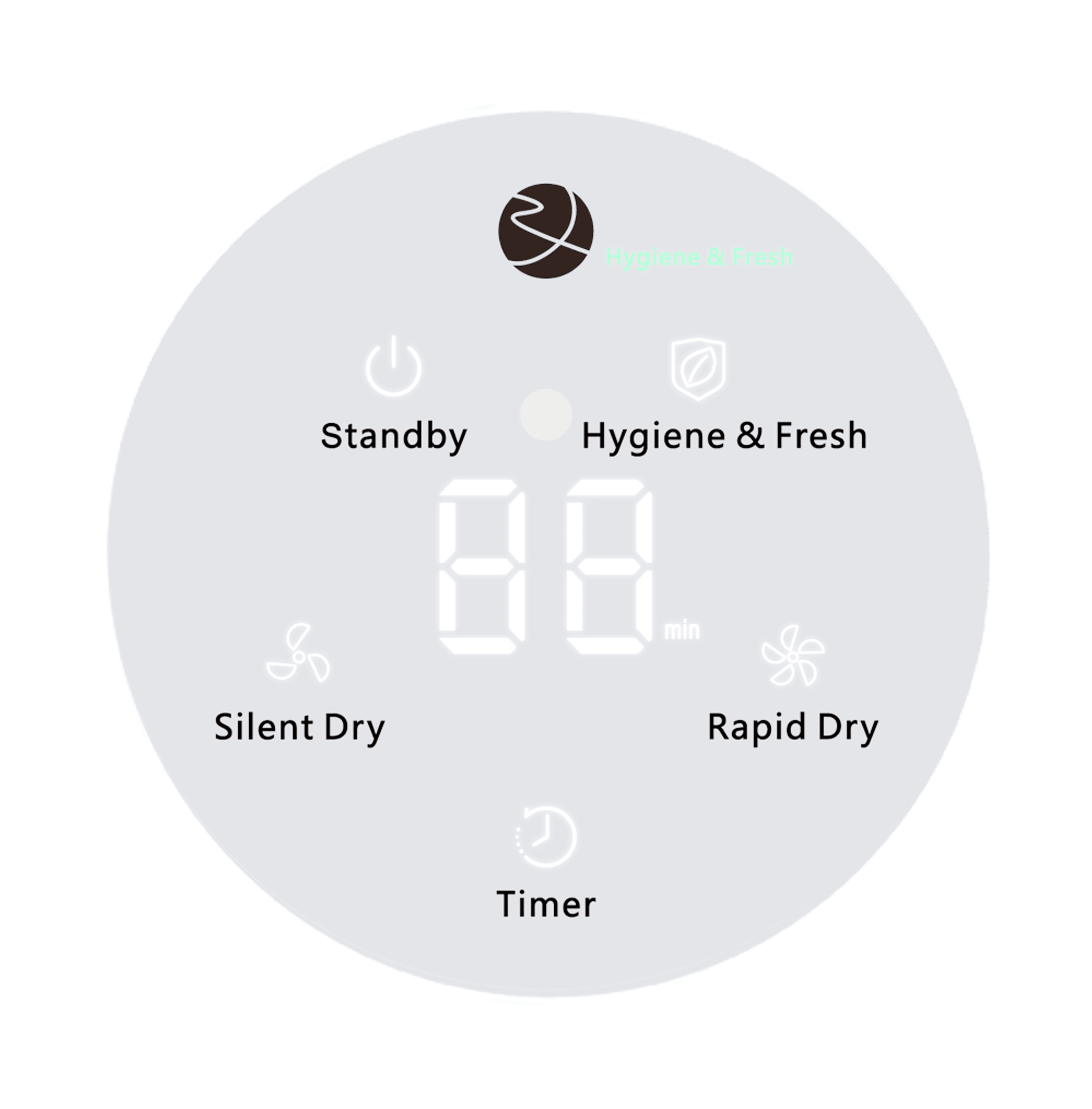

Controls
Standby
Press this button to turn off all functions.
Hygiene & Fresh
Press this button to turn the plasma + blowing function on or off.
Silent Dry
Press this button to turn Silent Dry (low setting, heating + blowing) on or off.
Rapid Dry
Press this button to turn Rapid Dry (high setting, heating + blowing) on or off.
Timer
Press this button to activate the timer. Each press adds 1 hour, up to a maximum of 9 hours. Press and hold for 1 second to cancel the timer. The display shows a countdown when 60 minutes remain.
When the ambient light is dim, the display turns off automatically; press any key to light it up for 10 seconds.
When the Silent Dry, Rapid Dry or Hygiene & Fresh function is activated, the display flashes “3h” three times, indicating that the function turns off automatically after 3 hours by default (a countdown is displayed when 60 minutes remain).
Loading tips
The better garments are wrung out, the faster they dry. All examples below show wrung-out garments.
T-shirt
After wringing out, the top can be placed directly on the dryer. Expected to dry within 3 hours.
Wring out clothes as much as possible to speed up the drying process.
Long sleeves
After wringing out, put the garment on the dryer. Expected to dry within 3 hours. Note:
1. Raise or invert the collar;
2. Sleeves turned inward can be placed over the lower air vent, or on the middle drying rod.
Underwear & socks
Wrung-out underwear can be placed on the middle drying rod; wrung-out socks can be placed over the two air vents below.
Underwear and socks can be dried separately; placing an additional garment over them gives a better drying effect. Expected to dry within 3 hours.
Safety warning
- Do not cover the air inlet.
- Clean the air-inlet filter regularly.
- Disconnect the power supply if the product will not be used for a long time.
- This product is not suitable for clothing with a length exceeding 100cm, such as long skirts, down jackets, coats, bed sheets, etc.
Care & cleaning
Air-inlet filter cleaning
- The air-inlet filter needs regular cleaning; always disconnect the power before cleaning. Cleaning every 2–4 weeks is recommended — in dusty or humid environments, increase the frequency appropriately.
- The filter is not a consumable. Rinse it with clean water at room temperature; for stubborn stains, wash it gently with a diluted neutral detergent.
- After cleaning, let it air-dry naturally in a cool, well-ventilated place, then reinstall it into the machine and continue using it.
Product cleaning
- Before cleaning, unplug the power plug, wipe the product surface with a soft cloth, then plug it back in.
- To avoid discoloration and accelerated aging of the surface, do not use diluents, alkaline cleaners, benzene, alcohol, fungicides, or steel wool.
- If you use a chemical cloth, clean this product according to its instructions.
All safety precautions (18 items)
- If the power cord is damaged, it must be replaced by the manufacturer, its service organization, or similarly qualified professionals to avoid danger.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Do not cover the air inlet. Clean the air-inlet filter regularly.
- During use, fully insert the power plug into the socket and keep it in good contact with the socket.
- When using an extension cord socket, use one that meets national standards.
- If the product produces abnormal noise, odor, high temperature, or malfunctions, stop using it immediately, turn off the switch, and disconnect the power supply.
- Do not supply power to the appliance from lamp heads with sockets.
- The total rated current of appliances connected to an extension cord socket must not exceed the rated current of the original fixed socket or wiring.
- Do not use this product near flammable or explosive materials or in similar environments.
- Do not disassemble the appliance by yourself, and do not change internal wiring, components, or protective devices.
- When unplugging, do not apply tension to the power cord.
- Do not replace the fuse with ordinary conductors or fuses exceeding the specified current capacity.
- Do not change the settings of the low-voltage circuit breaker or residual current device on your own.
- Obtain the user manual through the company website www.cnzxzn.com.
- Clean the air-inlet filter regularly and disconnect the power before cleaning; cleaning every 2–4 weeks is recommended — in dusty or humid environments, increase the frequency appropriately.
- Never expose the air-inlet filter to direct sunlight or dry it with hot air from a hair dryer; this deforms the filter and makes the material brittle.
- Do not reinstall the filter until it is fully dry, to prevent mold and odor inside the machine; never run the machine without the filter installed, as dust would enter the interior and shorten its life.
Troubleshooting
| Symptom | Possible cause | What to do |
|---|---|---|
| No hot air blowing out | Faulty heater | Contact after-sales service or your dealer |
| Reduced air volume | Dust accumulated on the air-inlet filter | Clean the dust off the air-inlet filter |
| Touch screen cannot be operated | Faulty communication module on the circuit board | Contact after-sales service or your dealer |
| Abnormal noise | Loose fan components | Contact after-sales service or your dealer |
If the problem persists, disconnect the product from the power supply, then contact after-sales service or your dealer.
Error codes on the display
Communication anomaly between the touchpad and the main board
This cannot be resolved by yourself — please contact after-sales service.
Motor malfunction
Disconnect the power for more than 10 seconds and reconnect to try clearing the fault code; if the error persists, contact after-sales service.
Specifications & warranty
Manual version number: 20260911. The actual product shall prevail.
| Product name | Vertical Clothes Dryer |
| Product model | ZXZN-VLTD 100-A |
| Rated power supply | 220-240 V~ 50-60 Hz |
| Rated power | 300 W |
| Product dimensions | Width 403mm × Height 1254mm, base diameter 410mm |
| Net / gross weight | 4.8kg / 8kg (gross includes outer packaging and accessories) |
| Packing list | Appliance × 1, manual accessory pack × 1 |
| Whole-machine warranty | 3 years (from the date of sale), with lifetime maintenance |
| Environmental protection use period | 10 years |
During the warranty period, malfunctions caused by product quality issues are repaired or parts replaced free of charge upon presentation of the manual warranty card and valid proof; after the warranty period, material costs and a nominal service fee are charged. Damage caused by failure to install, use or maintain the product according to the instructions, by repairs from unauthorized personnel, by human damage, or by force majeure does not fall within the scope of the "three guarantees" service; paid service is still provided.
The full manual is available on the company website www.cnzxzn.com.
